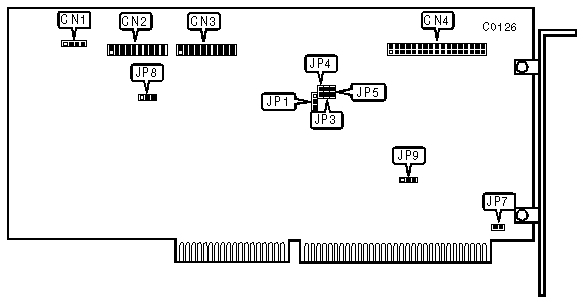

LONGSHINE MICROSYSTEM, INC. LCS-6610HX Rev. 2
| Data bus: | 16-bit, ISA |
| Size: | Half-length, full-height card |
| Hard drives supported: | Two MFM ST506/412 drives |
| Floppy drives supported: | None |
| Max. Heads and Cyls.: | 16 Heads and 1024 Cyls. |
| CONNECTIONS |
| Function | Location |
| 4-pin connector-drive active LED | CN1 |
| 20-pin data cable connector-drive 0 | CN2 |
| 20-pin data cable connector-drive 1 | CN3 |
| 34-pin control cable connector-hard drive | CN4 |
| USER CONFIGURABLE SETTINGS |
| Function | Location | Setting |
| » | Hard drive port address is 1F0-1F7h | JP4 | open |
| | Hard drive port address is 170-177h | JP4 | closed |
| » | BIOS other than DTK on host | JP5 | closed |
| | DTK BIOS on host | JP5 | open |
| » | LCS-6610HX is not grounded to host | JP7 | open |
| | LCS-6610HX is grounded to host | JP7 | closed |
| Note:Jumper JP1, JP3, and JP8 are reserved and must be left "open."JP9 is reserved and must be left pins 1 & 2 "closed."This controller contains no on-board software. |
