ACCULOGIC, INC.SIDE-3/PLUS
Data bus:16-bit, ISA
Size:Half-length, half-height card
Hard drives supported:Two IDE(AT) drives
Floppy drives supported:Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB

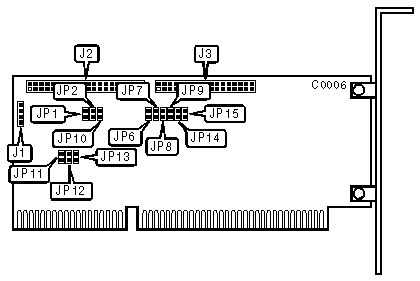

CONNECTIONS
FunctionLocation
4-pin connector-Drive Active LEDJ1
40-pin AT Interface (IDE) connectorJ2
34-pin control cable connector-floppy driveJ3
BIOS ADDRESS
AddressJumper JP12Jumper JP13
»C800hopenopen
 CC00hopenclosed
 D800hclosedopen
 DC00hclosedclosed
USER CONFIGURABLE SETTINGS
FunctionLocationSetting
»Floppy drive port address is 3F0-3F7hJP6open
 Floppy drive port address is 370-377hJP6closed
»Hard drive port address is 1F0-1F7hJP7open
 Hard drive port address is 170-177hJP7closed
»Single speed floppy drives supportedJP8open
 Dual speed floppy drives supportedJP8closed
»Floppy drive precompensation is 125nsJP9open
 Floppy drive precompensation is 187nsJP9closed
»I/O Channel Ready signal disabledJP10open
 I/O Channel Ready signal enabledJP10closed
»BIOS enabledJP11open
 BIOS disabledJP11closed
»2.88MB drivesnot supported on A:JP14open
 2.88MB drives supported on A:JP14closed
»2.88MB drivesnot supported on B:JP15open
 2.88MB drives supported on B:JP15closed
IRQ14 STATUS
FunctionJumper JP1Jumper JP2
»IRQ14 normalclosedopen
 IRQ14 delayed until ACTIVE- signal is removedopenclosed
MISCELLANEOUS TECHNICAL NOTES
This Controller has no on-board software.
