LONGSHINE MICROSYSTEM, INC. LCS-6623 REV. N1
|
| Data bus: | 16-bit, ISA |
| Size: | Half-length, full-height card |
| Hard drive supported: | Two IDE (AT) Interface drives |
| Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

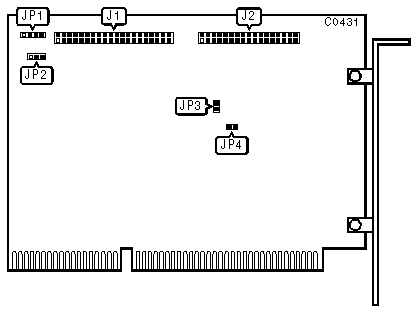

| CONNECTIONS |
| Function | Location |
| 40-pin AT Interface (IDE) connector | J1 |
| 34-pin control cable connector-floppy drive | J2 |
| 4-pin connector-Drive active LED | JP1 |
| USER CONFIGURABLE SETTINGS |
| Function | Location | Setting |
| » | IRQ connected directly to host | JP2 | pins 2 & 3 closed |
| | IRQ Buffer mode enabled | JP2 | pins 1 & 2 closed |
| » | Zero wait state disabled | JP3 | open |
| | Zero wait state enabled | JP3 | closed |
| » | Floppy drive enabled | JP4 | closed |
| | Floppy drive disabled | JP4 | open |
